Federal Roadway Project
Red Cloud Mine Road
![IMG_1516](https://www.whelcon.com/wp-content/uploads/2024/05/IMG_1516.jpg)
Scope of Work

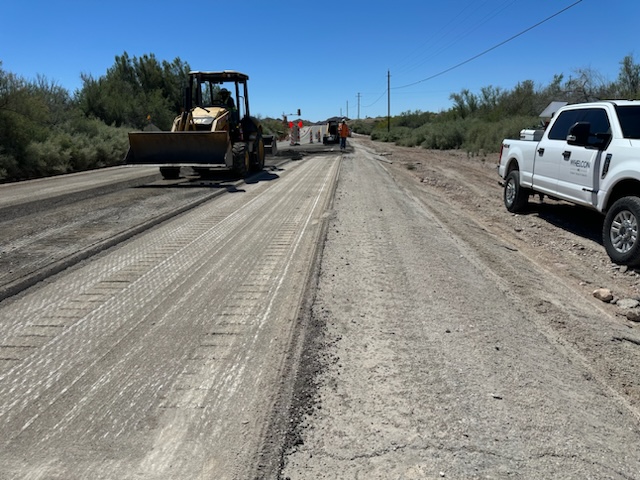

The scope of work for this project encompasses enhancements to the existing roadway, including surface milling, aggregate base improvements, and asphalt surfacing.
Key Project Elements
- Repair and enhancement of the structural integrity and safety for total roadway length of 1.34 miles.
- To improve road ride quality and serviceability of 16 cattle guards used as drainage culverts, diamond tread steel plates have been bolted on top railings at wheel paths.
- The roadway, in drainage low sections, milled 1.5-inches of AC and 4-inches of cement treated base and removed. This is replaced with an imported aggregate base course.

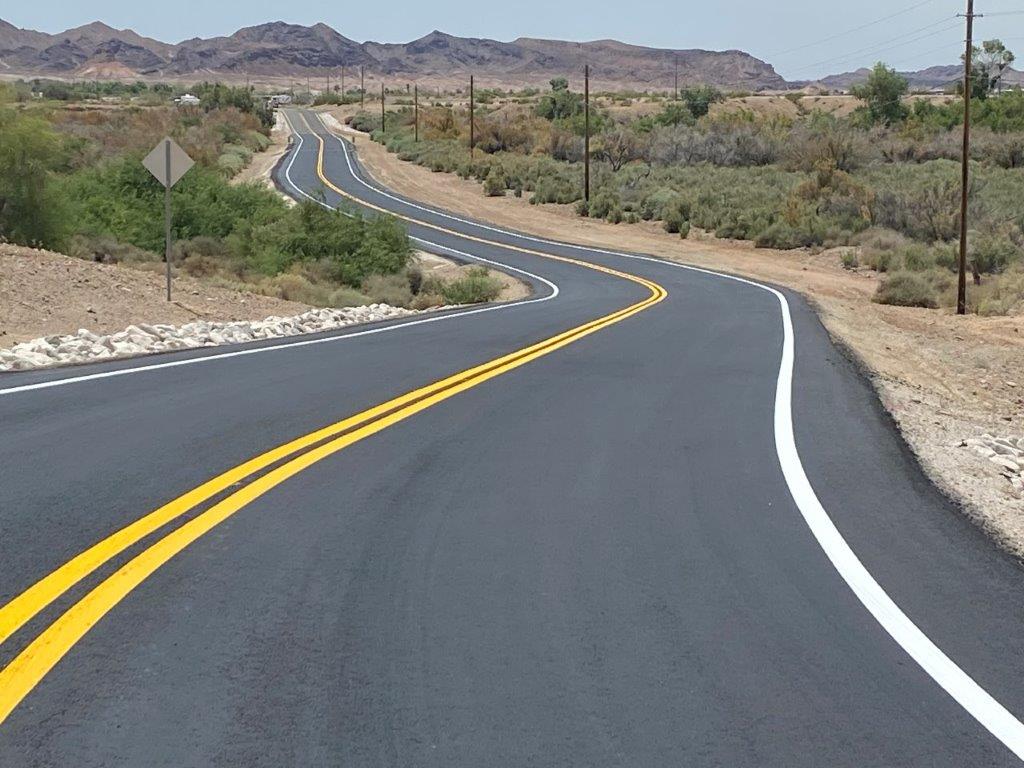

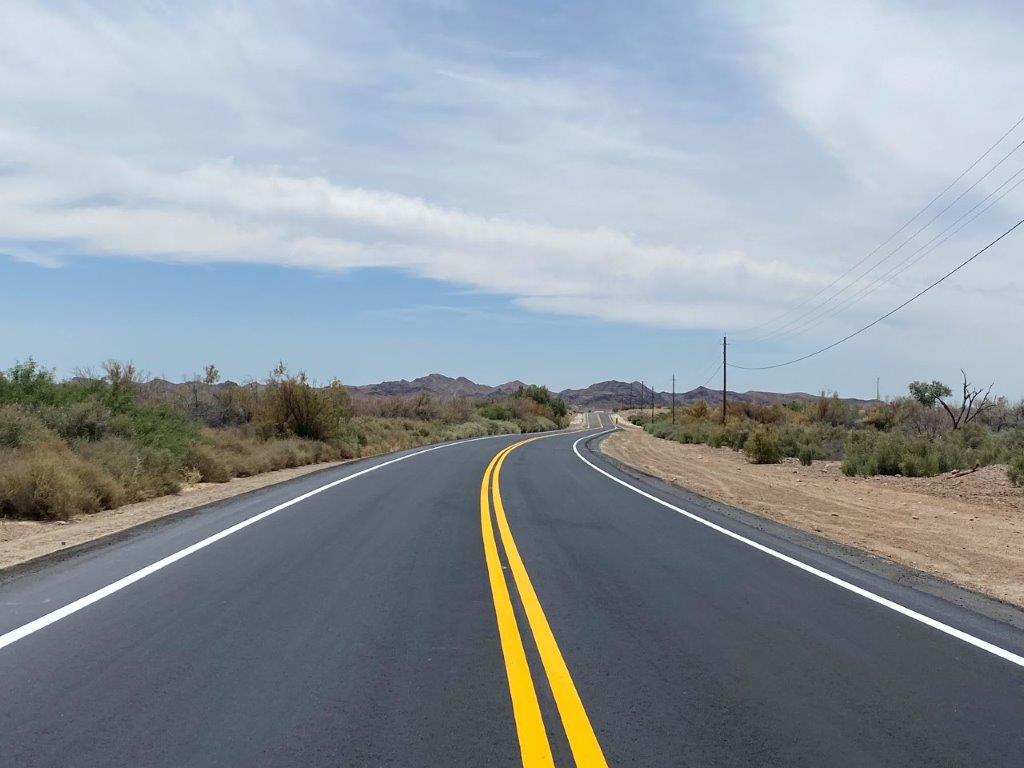

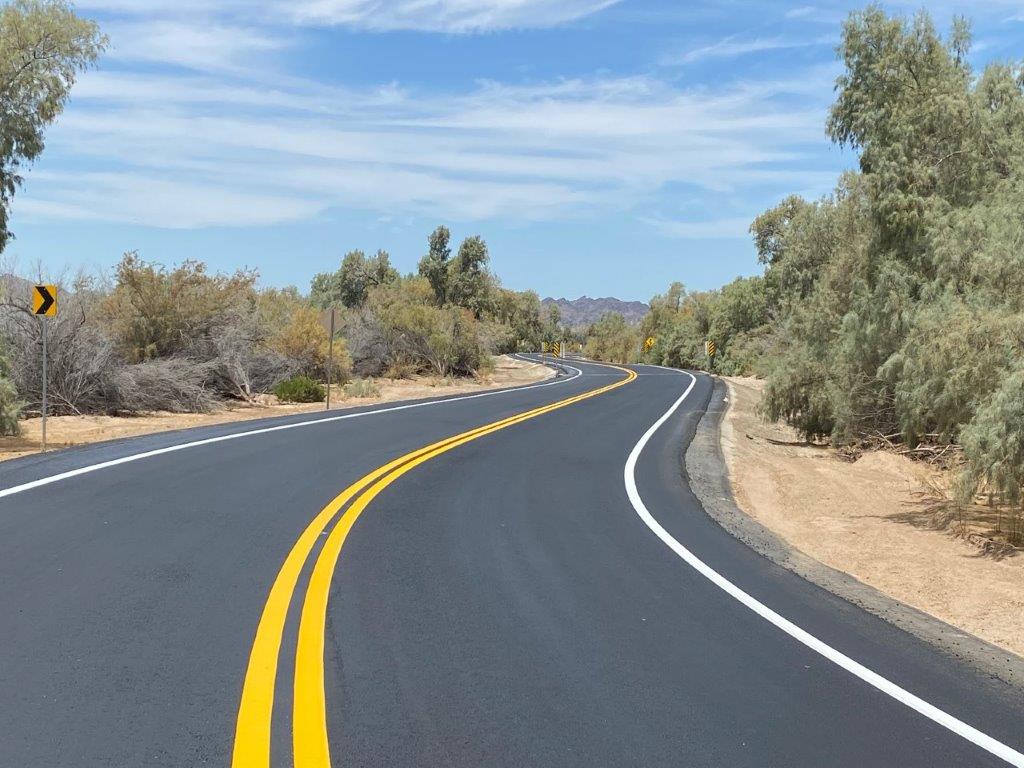

- Roadway received two lifts of 1.5-inches of asphalt pavement in drainage sections and 1.5-inches of asphalt overlay in non-drainage sections.
Project Location:
Imperial National Wildlife Refuge, Yuma County, Arizona
Project Owner:
Federal Highway Administration
Project Timeline:
March 2024 – Present
Contract Amount:
$3,143,000.00
![IMG_1664](https://www.whelcon.com/wp-content/uploads/2024/05/IMG_1664-scaled.jpeg)
Before
![IMG_1670](https://www.whelcon.com/wp-content/uploads/2024/05/IMG_1670-scaled.jpeg)
After
